Pat Norris Archery

Micro-Adjust Springy Rest

Micro-Adjust Springy Rest

Regular price $57.50 USD
Regular price Sale price $57.50 USD
Sale Sold out
Draw
Bow Style
Spring Weight

If you want additional springs with this order - CLICK HERE.

The Stainless Steel Micro Rest is Here. Now in Bright Silver

New and Improved MICRO ADJUSTABLE SPRINGY REST.

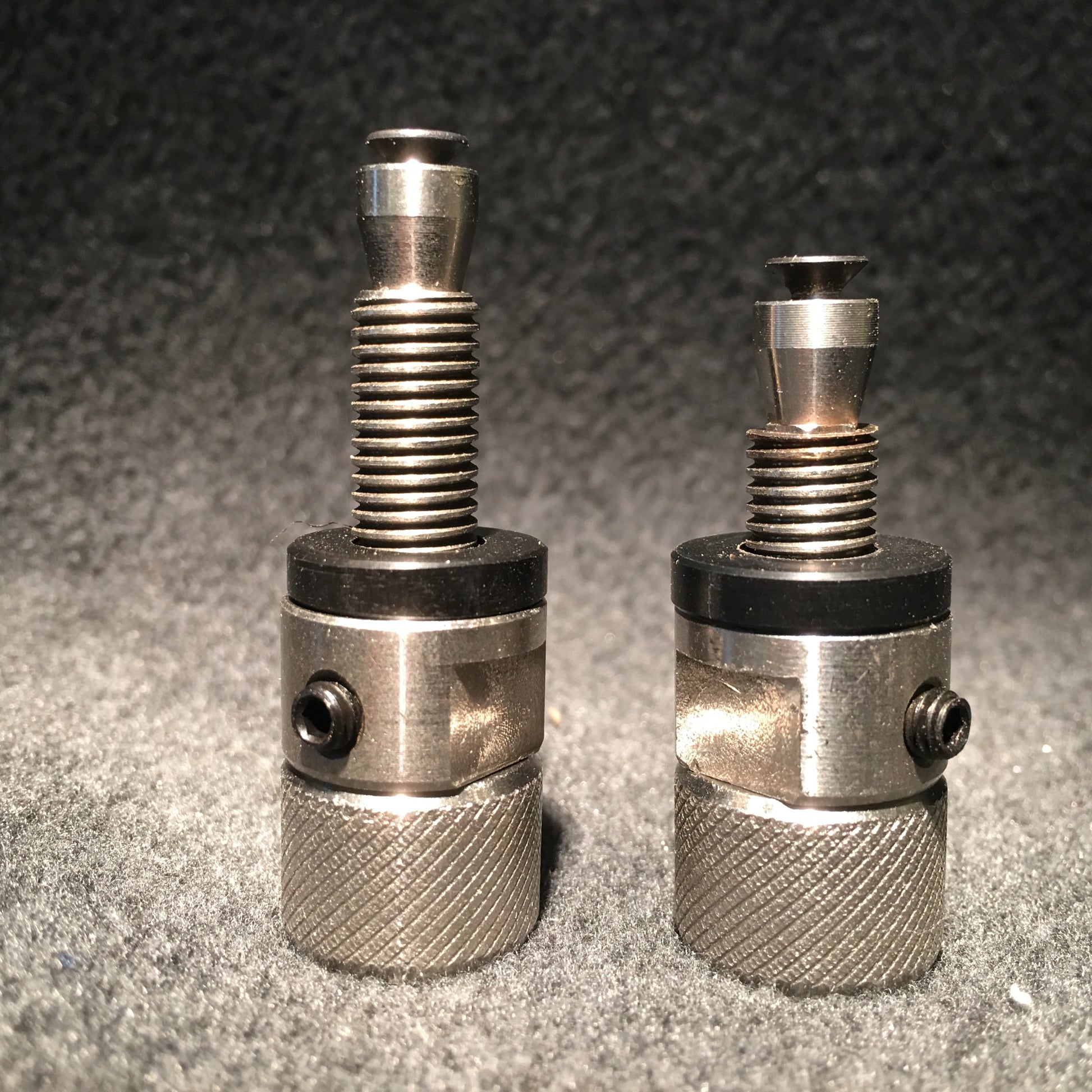

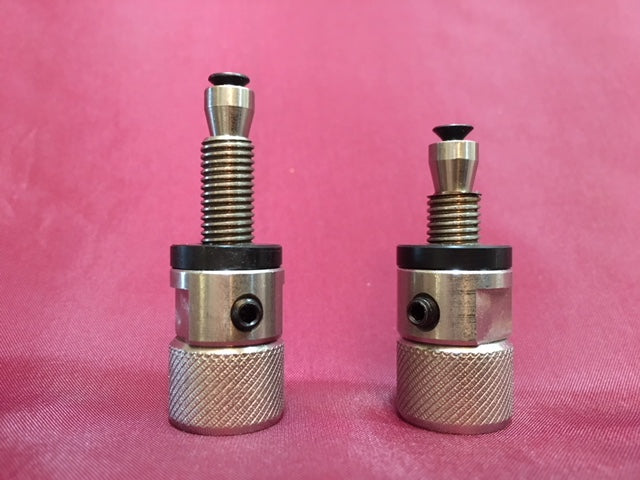

The taller one is for compounds or any bow that is cut way past center.  This Micro Adjustable Springy comes with a longer hex arm and has more 5/16 X 24 threads for installation into the riser.

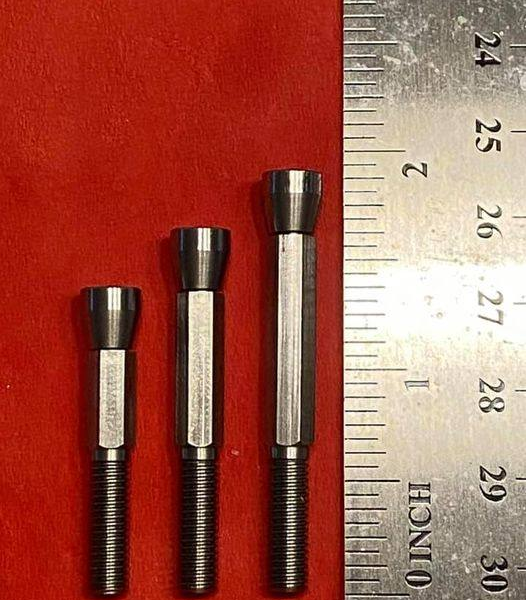

The shorter one has less 5/16 X 24 threads for installation into the riser.  This one is mainly for recurves and older compound bows that do not have the offset in the riser.  The short hex arm is also approximately 1/4 inch shorter than the longer one, and now Pat has added an extra long Hex Arm.

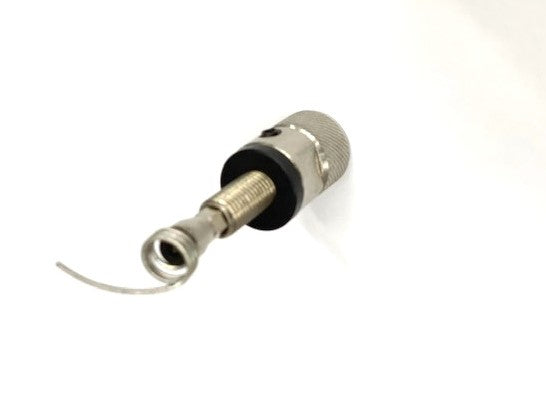

As shown in the picture the Flat Head screw (3mm) that holds the Coiled SPRINGY Rest to the hex arm and the socket head windage locking screw (4mm) take the same metric Allen wrench (2mm) that is included with each Micro Adjustable Springy Rest.
Each unit comes with one Springy coil of the customer's choice.  RH or LH and in 10, 15, 20, 25, or 30 ounce springy coils.
The cost is $57.50 with one springy coil, one custom machined spacer washer, and one Allen wrench.
$9.65 Shipping to USA States via USPS Priority Mail.
$21.90 Shipping overseas  (outside of the USA)

Springy Set up!

The springy arrow rest is pretty simple.

Standard Springy....Screw in the base/rod. Screw a spring on it. Adjust center shot and tighten the base/rod with the hex nut..

Micro Adjust body tighten by adjusting it tight against the supplied washer.. Do not over tighten as you can break it.. If you need more or less left - right adjustment either take out a washer or add a washer to help adjust the center shot. .

Adjust it so that the center of your arrow is in the center of the coil resting on the arm.. Shoot some arrows and check alignment with target...adjust left or right to get the arrow hitting down the middle.. If you have a nock high or low adjust your nocking point to get it flat..

The best archers usually had a paper tear of about 1/4 inch at 11:00 o'clock and shot from 6 to 10 feet.

Most archers buy two or three different sizes of springs and then shoot one for a week or so.. Then change to another spring weight and shoot it for a week or so. You will find that one setup works perfectly for you and you also will find that a buddy will shoot a different weight springy even though you both have the same weight bow, same arrow size, and length. It just happens.

If you want additional springy coils with this order - CLICK HERE.

Please Read "Springy Arrow Rest - Rules of Thumb"

We want to keep it simple and save our customers money.  Pat makes a small recommendation...Get 3 or 4 buddies to co-op your order by adding their archer needs and save shipping costs.



Good morning Pat,
The package (Order #3267) arrived on Friday (23.07.). On Sunday I finally found time to try the first Springy on one of my ACS Bows.... The result is fantastic..., i am thrilled..., the long way of searching has finally come to an end
Thanks a lot, see you soon and best regards from Dortmund in Germany.
 Jörg
